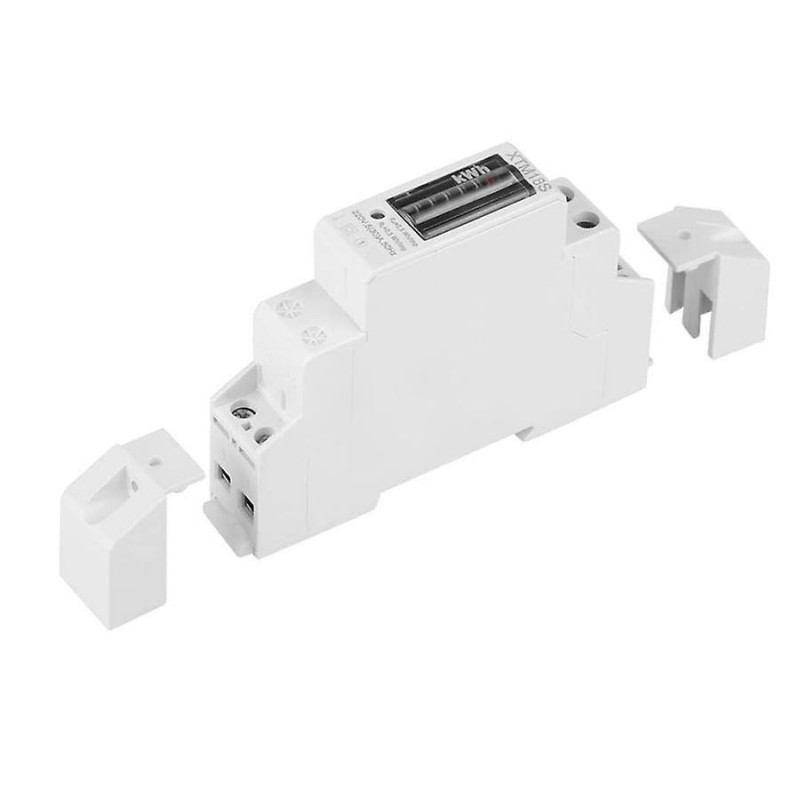

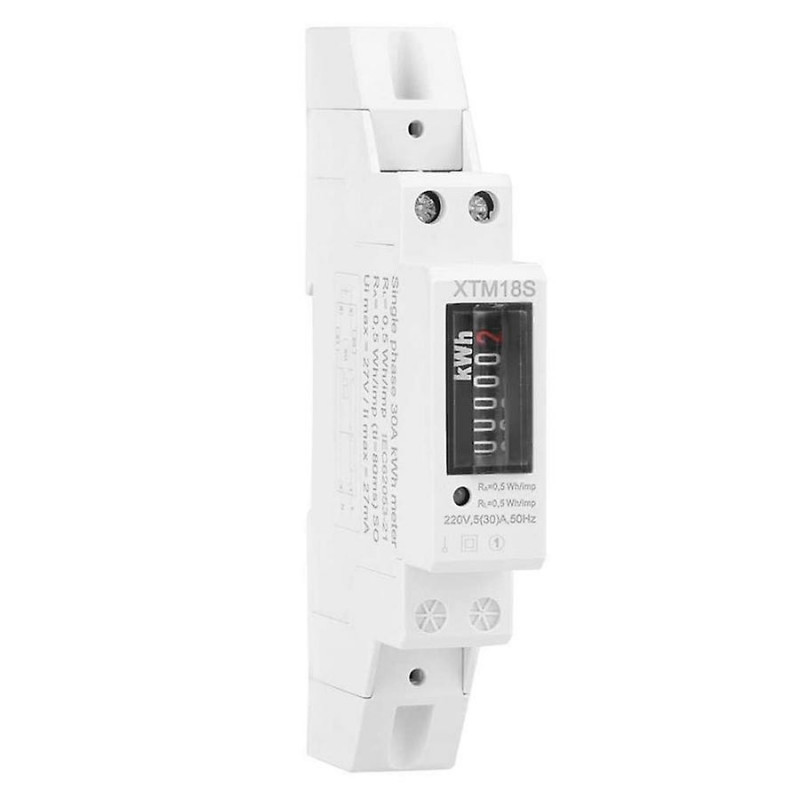

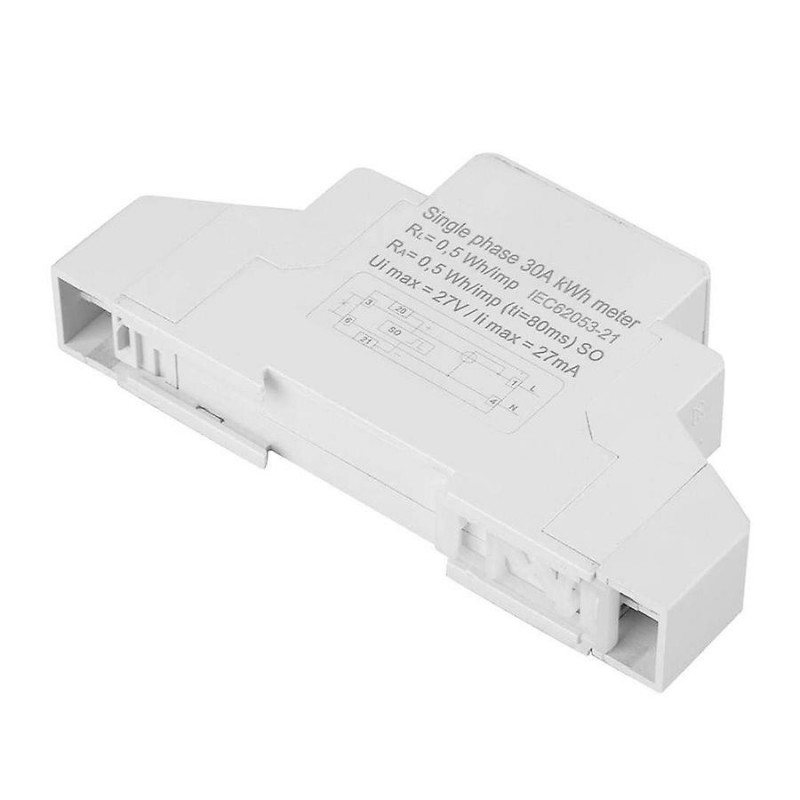

220V 5(30)A Digital LCD Single Phase 1P DIN-Rail Electric Energy Meter Electronic KWh Meter for Home Use

[Accuracy class 1]The meter can directly and accurately measure active energy of the energy consumption. [5+1 digits LCD display meter]This meter adopted LCD display is 5+1 digits display (99999.1kWh) by step motor type impulse register,and blue backlight for easy reading. [35mm standard DIN- rail installation]35mm standard DIN- rail installation,complying with standard DIN EN50022. [Safety]Extension terminals cover, in order to protect to use safety. [Great Performance]Automatic detection the flow directionof load current. And instructions (Only red energy impulse signal when working, If no green instructions power supply, that is meaning the direction of the flow of load current reverse). Model: XTM18S Accuracy: Class 1 Voltage: 220V Current: 5(30)A Insulation performance: AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv colour: white Material: ABS Size: 12 x 6.3cm Package Contents: 1 x DIN-Rail Electric Meter 1 x English Manual Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
