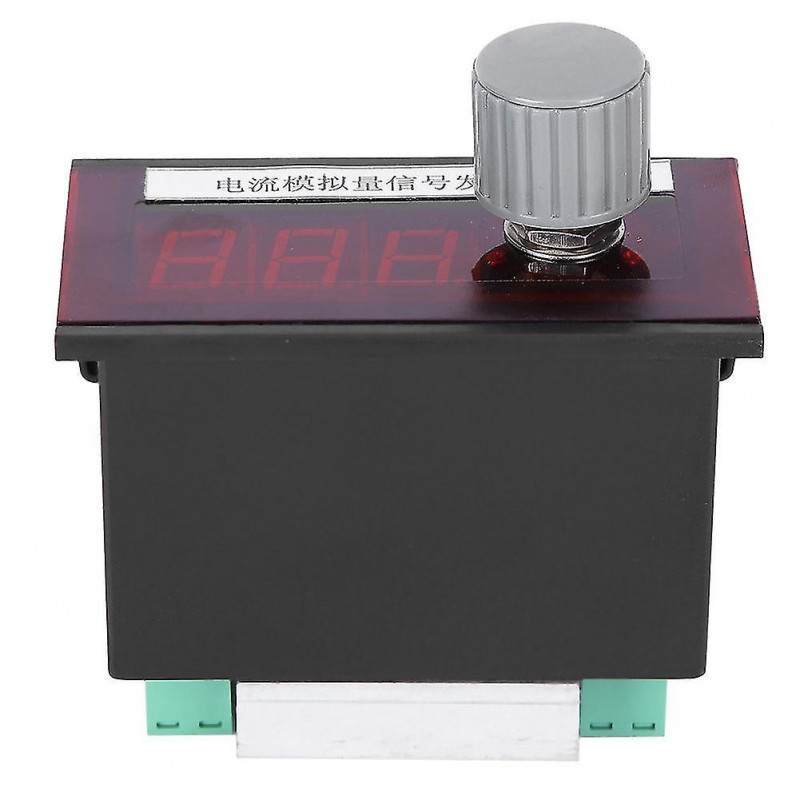

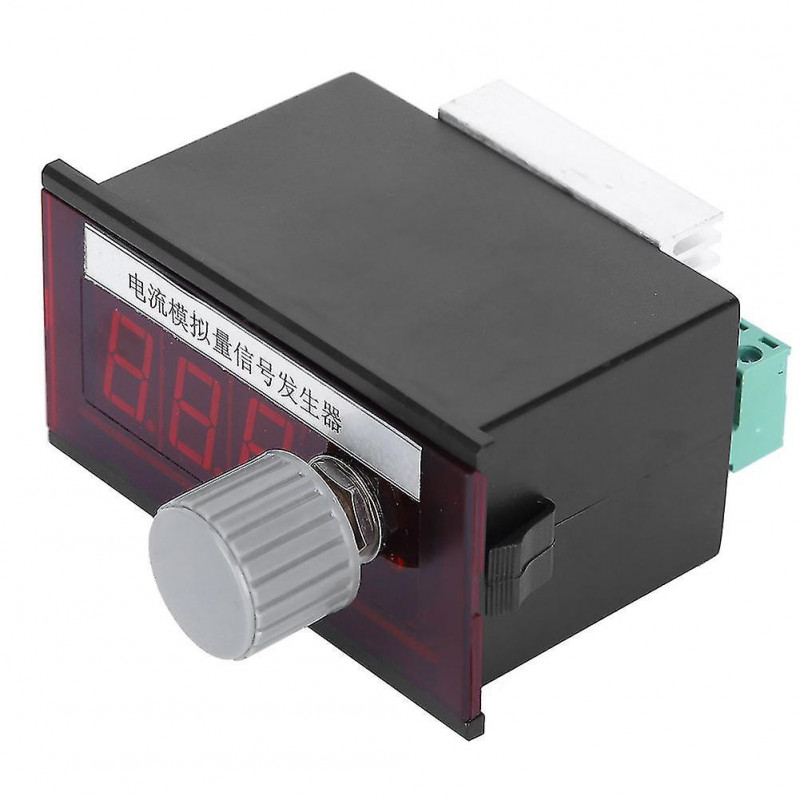

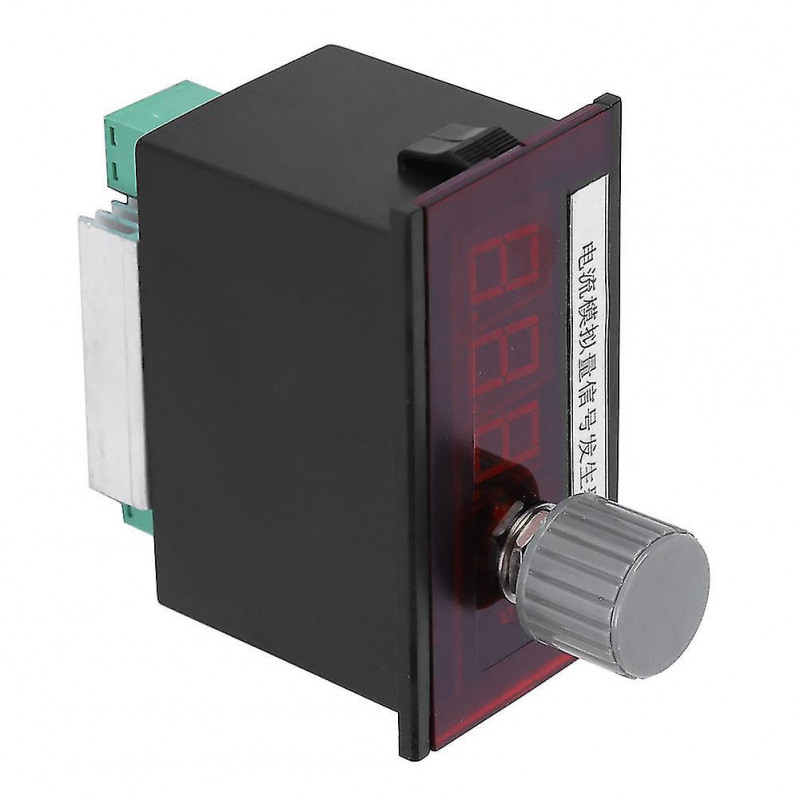

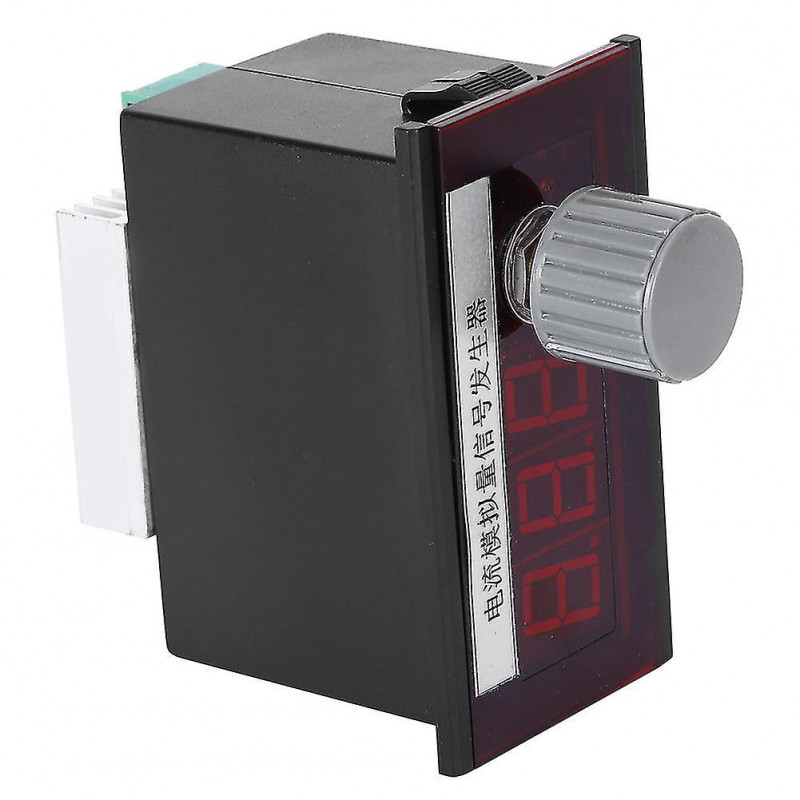

Digital display current generator cs4100ma multiturn potentiometer adjustment with large knob

1Connection is convenient to maintain, using 2pin 5.08mm spacing terminal, easier to wire. Secure spacing in the middle, safer to use. 2Using multiturn potentiometer of ultralong service life, highly wearresistant metal wire and high precision. 3Power supply input has reverse input protection, selfrecovery fuse protection function. 4Signal output has antilightning protection, antiESD static protection and antiinterference protection. 5Standard housing, convenient to install, large knob make sure good adjusting hand feeling. 6Using 0.56in bright durable display to make sure a good display effect under long distance and strong light. 7Input and output terminal uses antireverse input function for safety and reliability. Condition: 100% Brand New Item Type: Current Generator Material: ABSModel: CS-4-100MA Product Overview Connect the power supply to send 4-100MA constant current source control signal output, digital display the milliampere of the output current, the accuracy is one decimal place. Various protection circuits are designed inner side, the output signal is pure, and the performance of the whole machine is stable and reliable. The product can be used for: inverter control, PLC debugging, valve adjustment, instrument test, light-emitting diode test, analog transmitter output, signal source generation, etc. Meter head housing, easy to install Power input V+: Connect to the positive terminal of the power supply V-: Connect to the negative terminal of the power supply (GND ground wire) Current output C+: Positive terminal of output current C-: output current negative terminal 1. The power input voltage is 7-30V (5V power supply can be customized). Pay attention to matching with the output load. The greater the internal resistance of the load, the higher the power supply voltage must be used to match. The specific matching calculation needs to find out many parameters In order to calculate it, most users do not have such conditions or do not have relevant information on hand. According to experience, it can be solved like this: Generally, you can choose any voltage power supply of 9V/12V/24V. If you find that the maximum current is not enough to 20MA In the case of, you can gradually increase the supply voltage to solve the problem of signal matching. In general industrial occasion, 24V power supply is enough. 2. Power supply current. In order to make sure the stability of the system, the power supply terminal of this product must have a current output capacity of at least 500MA. 3. Output ripple coefficient1 x Current Generator
