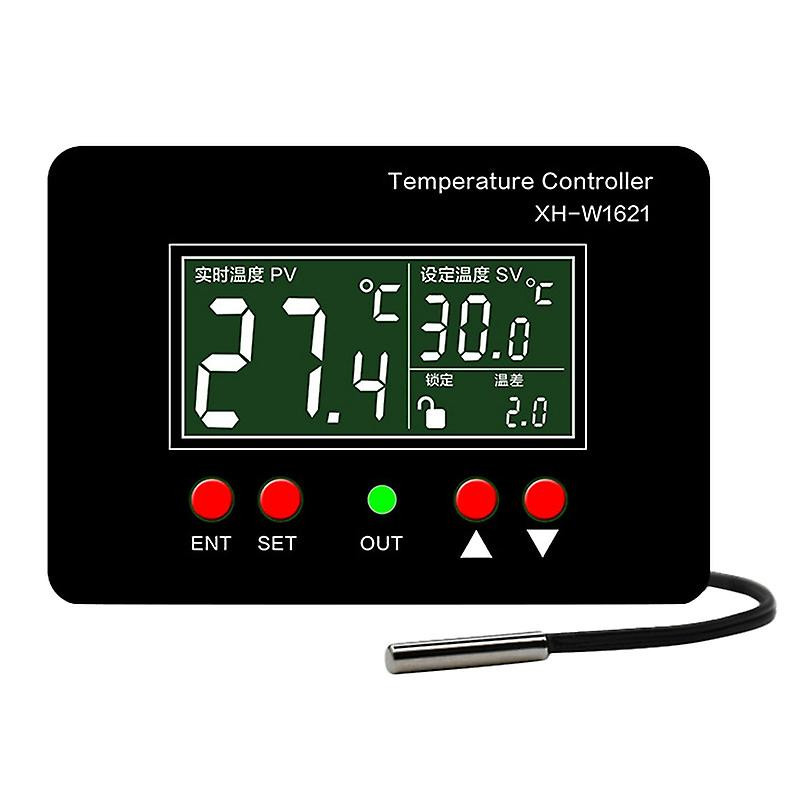

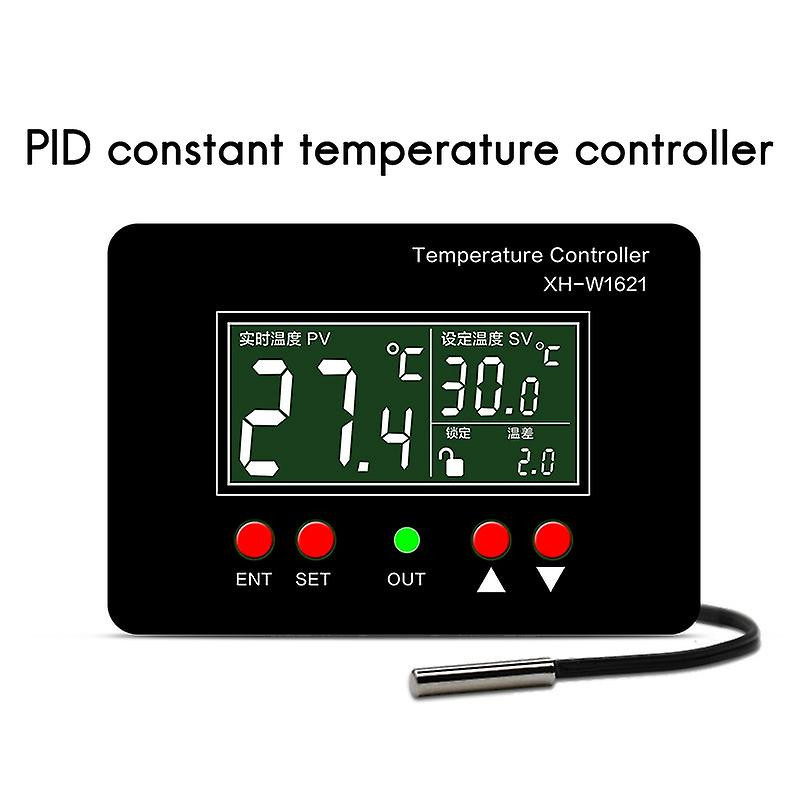

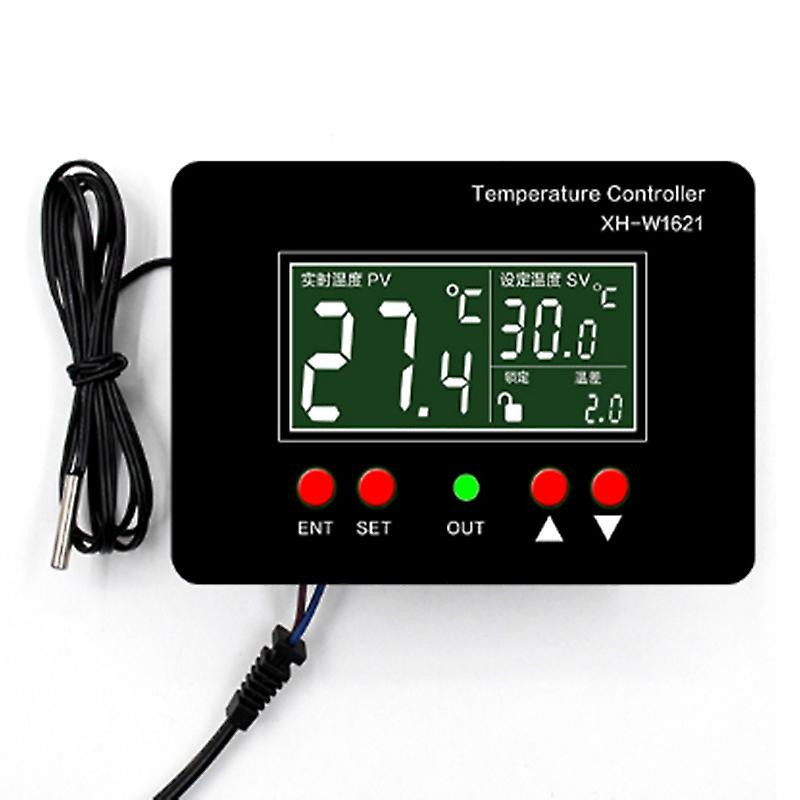

Constant Temperature Controller 12V-24V Universal NTC10K Waterproof Probe Digital Temperature Cont

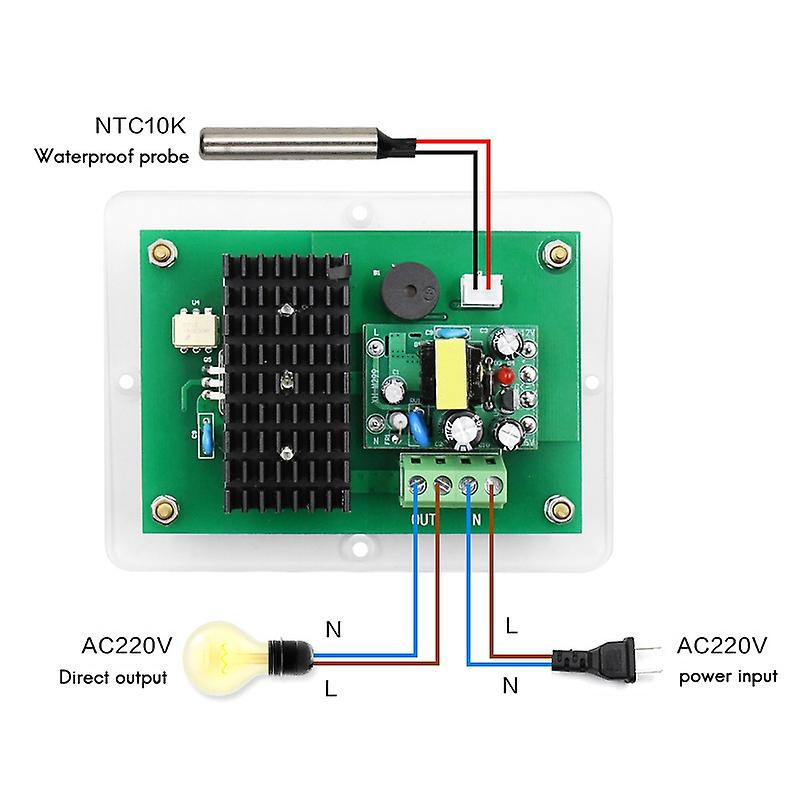

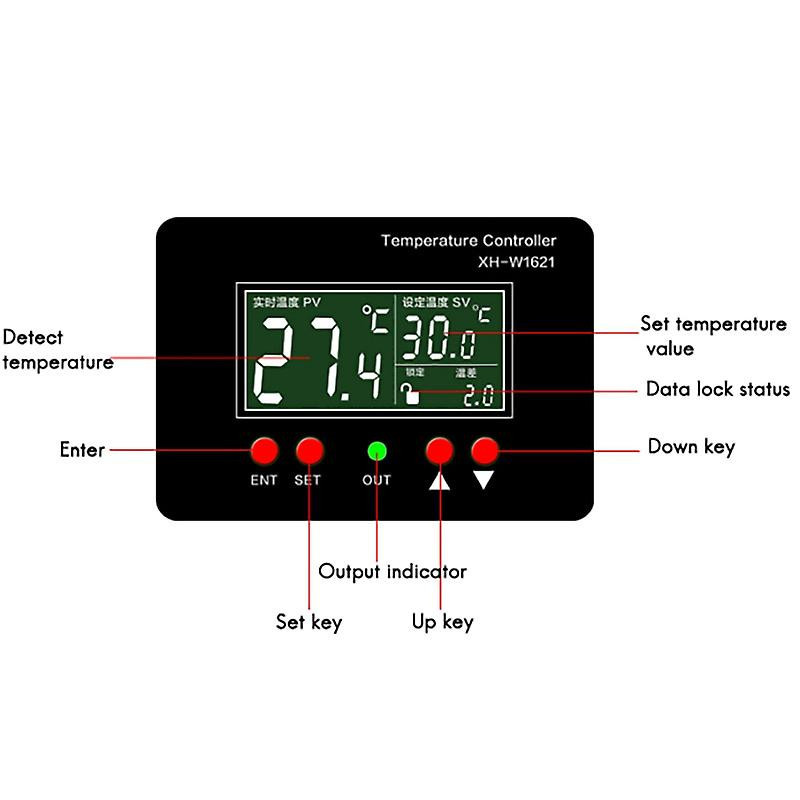

Set up and use: Connect the power supply and heating load according to the wiring diagram. Note that IN is the power supply interface and OUT is the heating load interface. After power on, the main screen on the left will display the actual measured temperature. Press the SET button (SET) to set the temperature in the upper right corner of the screen to start flashing, and then use the up and down buttons to adjust and set the desired heating temperature value. Press the set button to switch to the temperature difference setting in the lower right corner of the screen. At this time, the temperature difference setting starts to flicker. Set the temperature difference value through the up and down keys. (For example: the set heating temperature is 30 Celsius and the temperature difference is 5Celsius, then the high temperature alarm value is 30+5=35 Celsius). Press the set key to switch to the temperature correction in the lower right corner of the screen, at this time the temperature correction value starts to flash, and then press the up and down keys to set the temperature correction value. If the actual temperature is 28 Celsius and the probe detection temperature is 28.2 Celsius, then the temperature value can be set to -0.2; if the detection temperature is low, the correction value can be adjusted higher. Long press the ENT (confirm key) for 5 seconds, the data is locked, all keys are invalid; long press the confirm key for 5 seconds, the data is unlocked. Press the up and down buttons at the same time for 5 seconds, the screen will display 888 to indicate that the factory restoration is complete. Product parameters: Product name: constant temperature controller Product model: XH-W1621 Temperature measurement range: 0-110 Celsius Temperature measurement accuracy: 0.1 Celsius Temperature measuring probe: NTC10K comes standard with 1 meter waterproof probe Power supply voltage: AC220V Applicable environment: -15-55 Celsius non-condensing Output type: SCR direct output Output power: Max 1000w Colour:black Material:ABS+metal Size:110 x 82 x 38mm Package Contents: 1 * constant temperature thermostat 1 * sensing line Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
