Features:

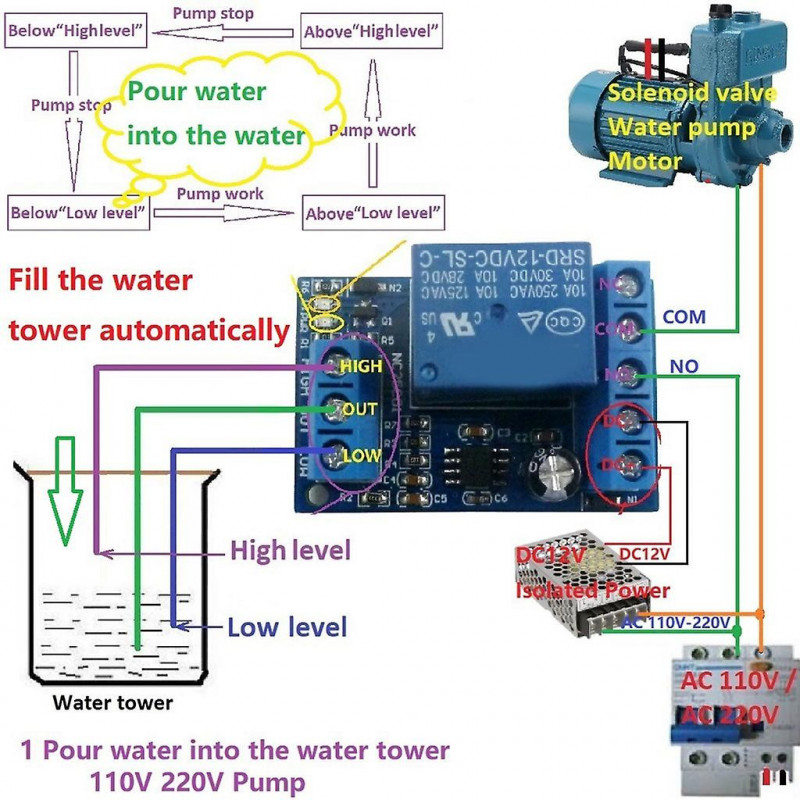

There are two purposes for connecting the NO and NC ports of therelay: The water pump is connected to the COMNC port to automatically fill the water tower

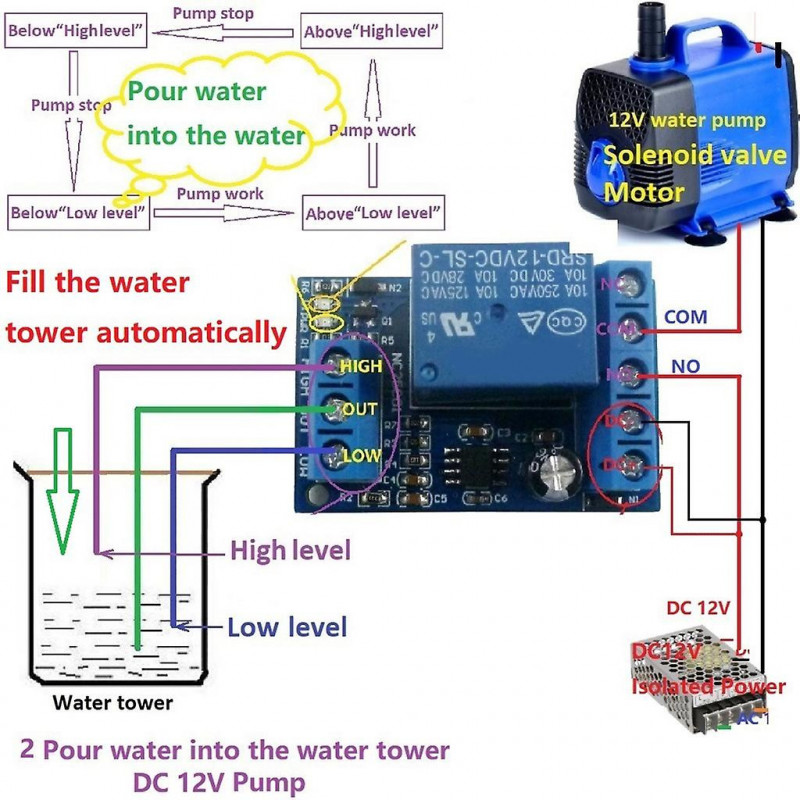

The water pump is connected to the COMNO port to automatically pump water from the water tower
Applications: for home water tower automatic water supply system
Widely used for Aquarium Fishtank Water Changer System;Fill the water tower automatically ;Automatic pumping from water tower ;Automatic feeding system for poultry and livestock;Farm automatic water supply system
Note: The packaging does not include probes (wires). No need to use a dedicated Probe. The probe can be made using household wires for safety reasons. Please use a well isolated DC power supply
Specifications:
Working voltage: DC12V (DC10-15V)
Standby current 9mA
Working current 40MA
Size: approx 44mmx29mmx19mm/1.73x1.14x0.75in
Weight: 19g
Load: Support up to 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC
Note:
Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.
Please allow 0-1cm error due to the manual measurment.
Package includes:

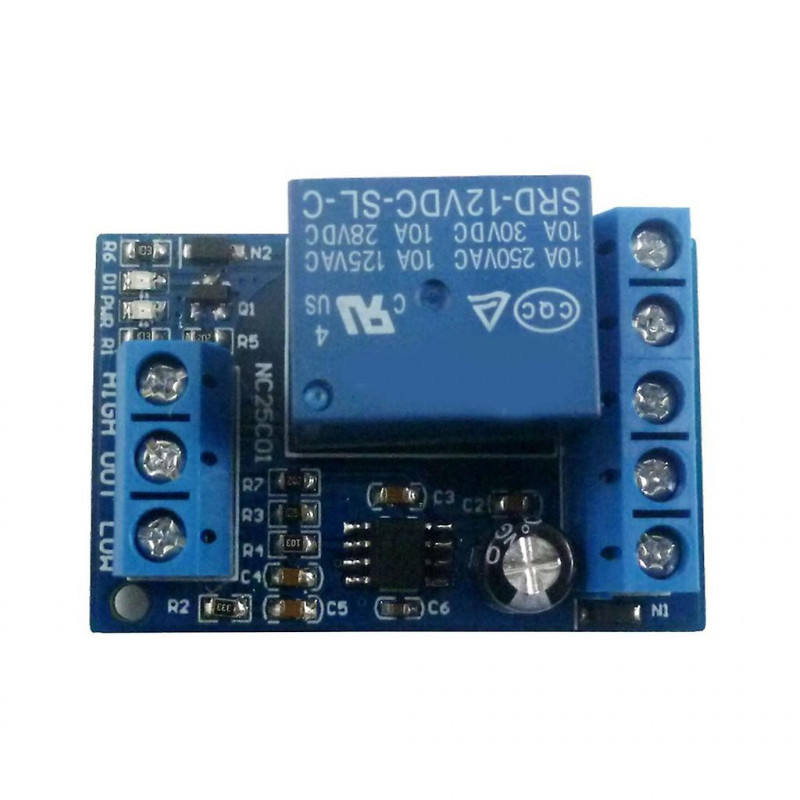

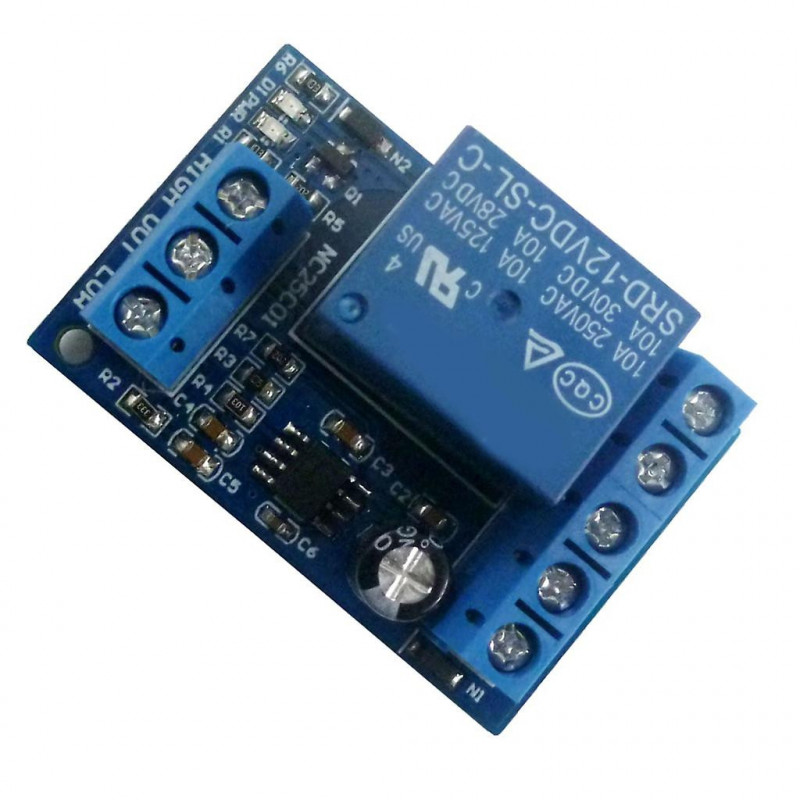

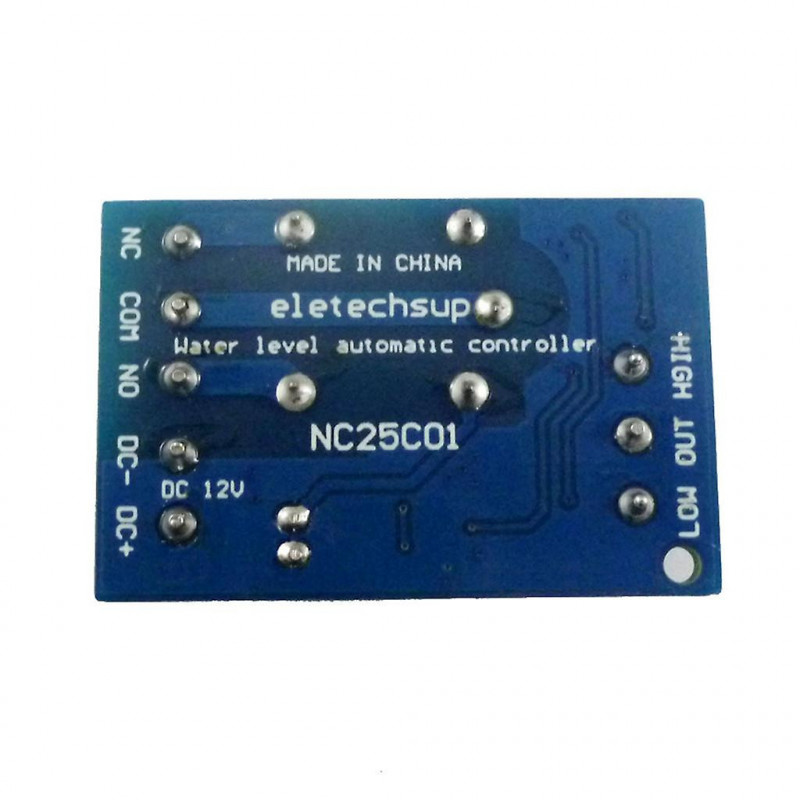

1PC Automatic Water Pump Controller
