measure environmental temperatures using ADC and this 10k NTC LINK Resistance to temperature conversion table LINK Typical Dissipation Constant 5mW/ C Probe insulation: 100MOhm
Voltage sustain time: 2 seconds, AC1800V 1mA 2 seconds
Stress sustain: 9.8N (1kgF) for 1 minute no deformation

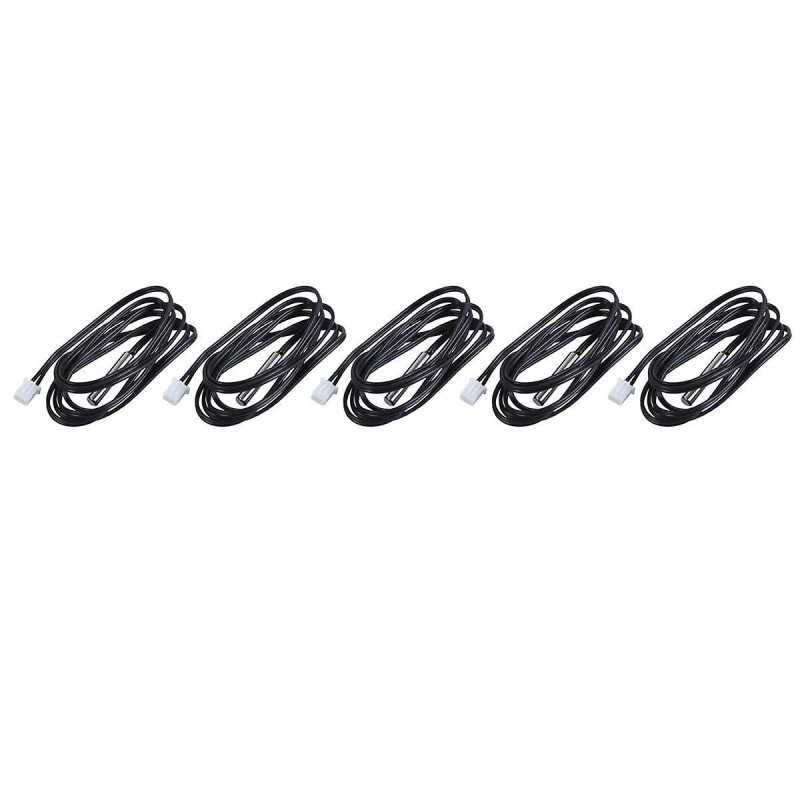

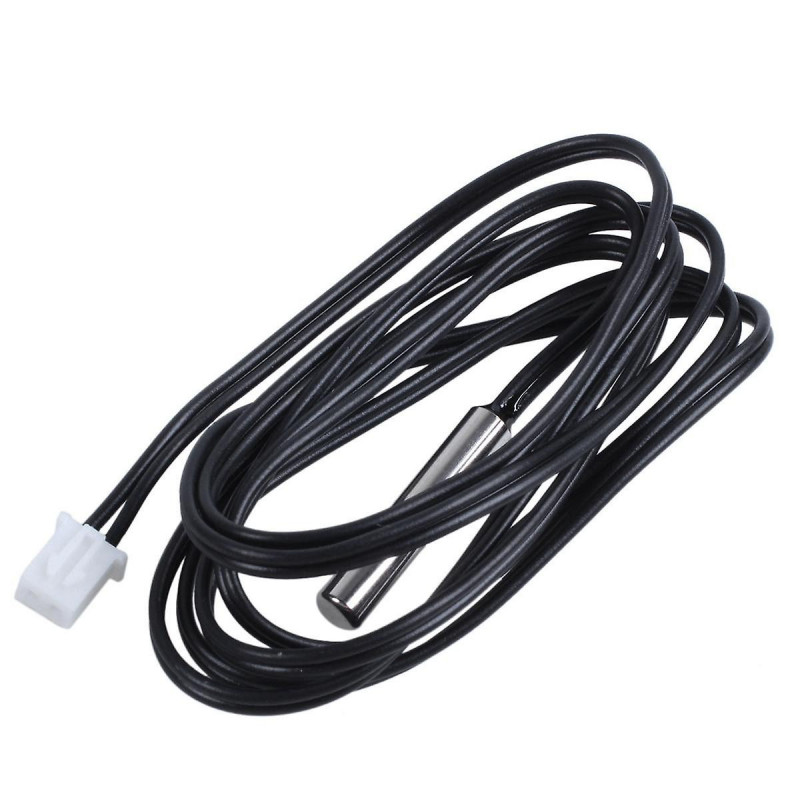

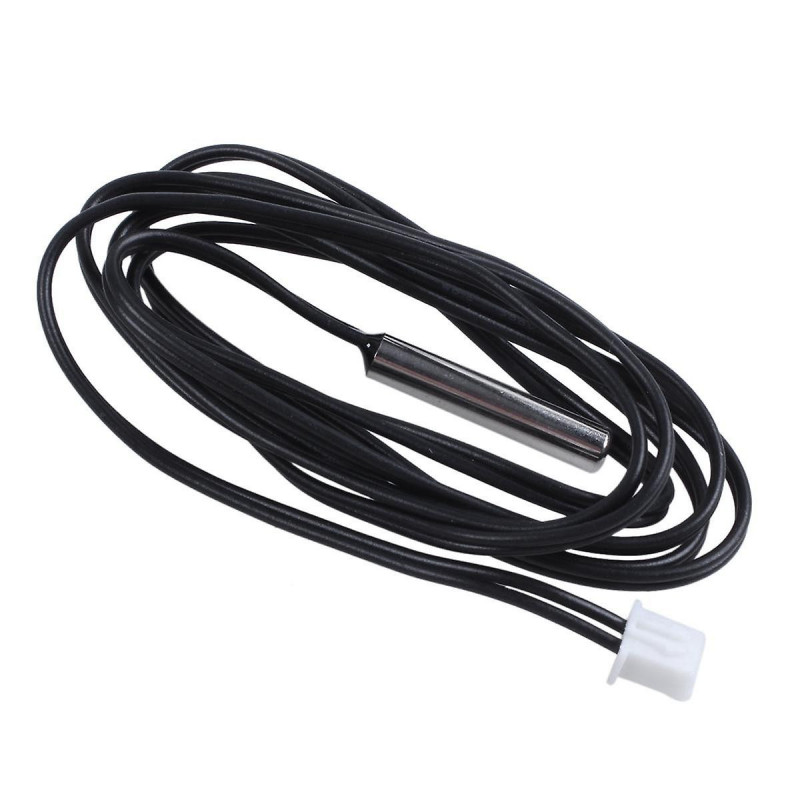

Product Name: Temperature Sensor Probe;
Type: NTC 10K 1%;
Measurement range: -20C to 105C(-4F to 221F)
Resistance: 10K Ohm;
Accuracy: 1%;

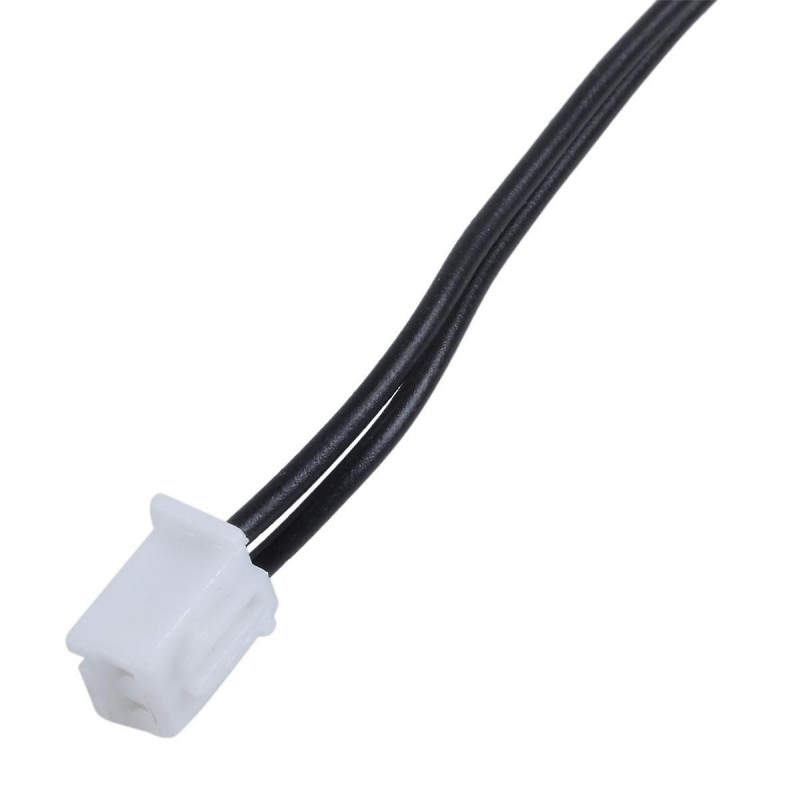

Connection Type: 2 Pin JST XH2.54mm Plug Connector
Head Size: 25 x 5mm / 1 inch x 0.2 inch(L x D);
Total Length: 1m / 3.3ft
Material: Plastic, Stainless Steel;
Main Color: Black,Silver Tone
Net Weight: 50g;
Package Content: 5 x Temperature Sensor Probe
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
